3E0659N-1DR
< IP67 VR

3E0659N-1DR

Vandal resistant button

  • IP67 Ingress protection
  • Momentary contact
  • N/O, N/C, C
  • Silver contacts
  • -25 Deg. C to +85 Deg. C operating range
  • Impact rating: IK07
  • Short actuation travel (0.8mm)
  • 2.5mm protrusion from panel
Icon

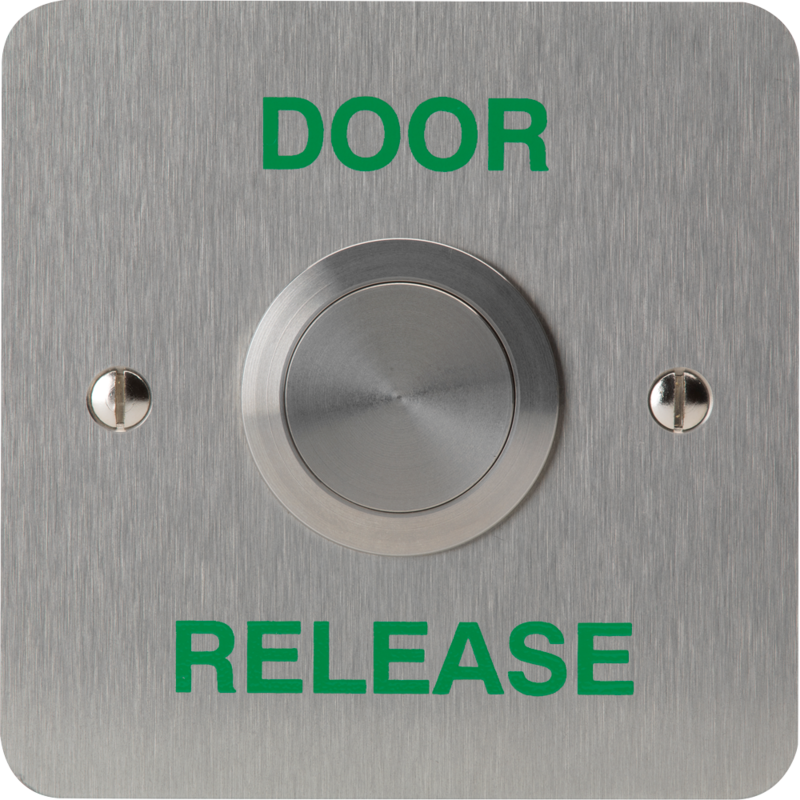

Product standard 0659n 1dr

Specification

Electrical
Life0.2 million actuations at Rated Switching Capacity
>100MΩ
Contact Resistance (initial)<30mΩ
750W
max. 5 / 3 A
max. 125 / 250 VAC
Mechanical
Operating Force4.5N
Life (nominal)1.5 million actuations
Contact Bounce<5ms
Travel0.8mm
Environmental
Operating Temperature Range-25°C to +85°C
Ingress ProtectionIP 67
Impact RatingIK 07
Contact MaterialAg
Stainless steel
Actuator MaterialStainless steel
Material
Grade 304 DP1 stainless steel (2mm)
